Custom Chimney Chase Cover Ventilation Design

A chimney chase cover does more than close off the top of a framed chimney chase. It helps manage water exposure while supporting the conditions needed around the venting system beneath it. For roofing contractors and property owners, custom chimney chase cover ventilation design requires attention to fit, vent clearances, material configuration, and the way the cover interacts with the chimney assembly. A properly fabricated cover should protect the chase without interfering with the venting components that allow the system to operate as intended.

Why Ventilation Matters in a Chimney Chase Cover

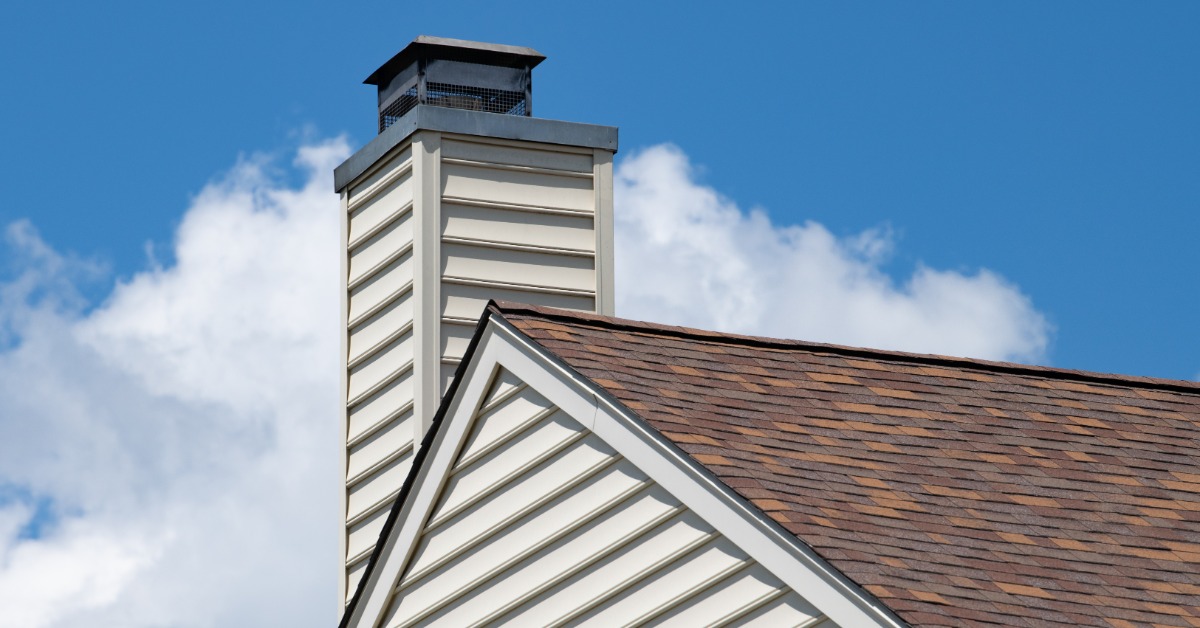

A chimney chase surrounds a factory-built chimney or vent system and gives the exterior a finished appearance. The chase cover sits across the top, creating a barrier between the chase cavity and rain or snow. Openings in the cover allow flue pipes or other approved vent components to pass through.

Ventilation design matters because a chase cover is not a simple flat lid. The fabrication must account for every penetration and the required space around the venting system. Contractors also need a cover that works with the existing chase dimensions instead of forcing field modifications that may create fit problems.

Start With Accurate Chase Measurements

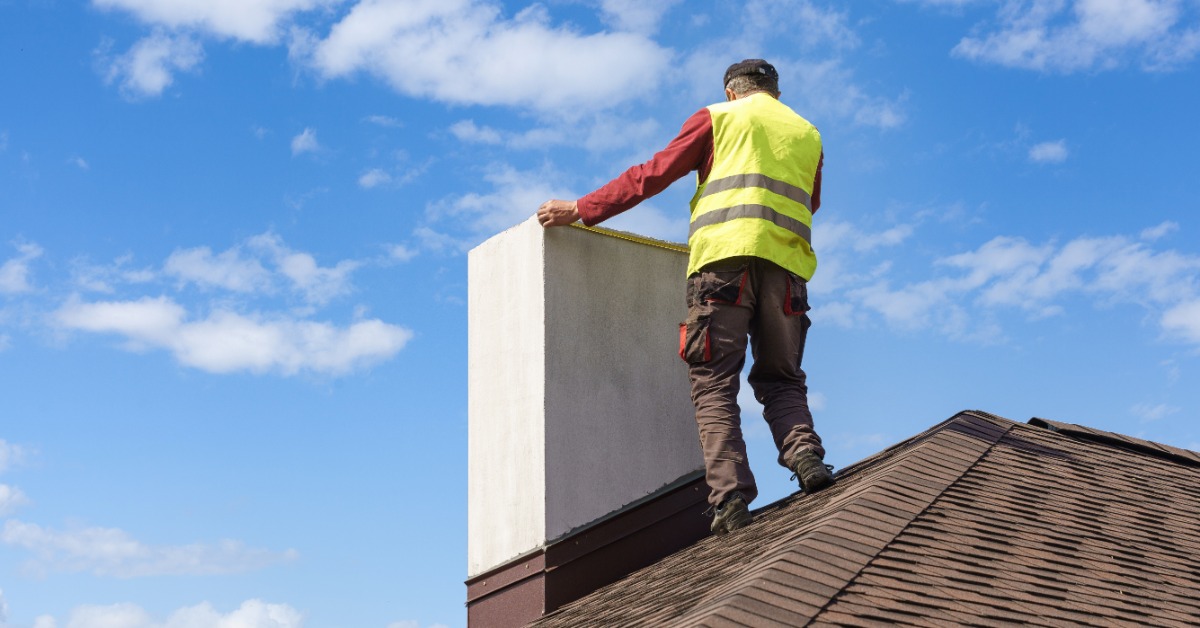

Custom fabrication begins with accurate dimensions. A chase that looks square from the ground may have small variations that affect how the finished cover fits. Measuring the outside dimensions at the installation area gives the fabricator a reliable starting point.

The size and location of each vent penetration also matter. A single-flue chase may need a straightforward opening, while a multi-flue configuration requires more planning. Each opening should align with the actual vent location so installers do not have to enlarge or shift penetrations on the job.

Contractors should also consider the desired overhang. The cover needs enough projection to move water away from the chase walls while maintaining a clean appearance. A custom order allows these dimensions to reflect the specific chimney rather than a standard size that only comes close.

Before placing an order, contractors can document the chase from above and confirm measurements at several points. This field check gives the fabricator clearer information before production begins.

Coordinate the Cover With the Venting System

The chimney or vent manufacturer determines important installation requirements for its system. Fabricators should follow those requirements when they design and build a custom chase cover. The cover opening, collar arrangement, and surrounding metal need to accommodate the approved chimney components.

This coordination becomes especially important when multiple vents pass through one chase. Different vent sizes or locations can change the layout of the entire cover. Clear measurements help the fabricator position openings correctly and reduce unnecessary adjustments during installation.

A contractor should verify the vent system before ordering the metal. Knowing what passes through the chase helps prevent assumptions about opening size or placement. Custom fabrication works best when the order reflects the actual field conditions.

Design the Cover To Manage Water

Ventilation performance and water management must work together. Every penetration through the cover creates an area that needs careful detailing. The cover should direct water away from openings instead of allowing it to collect around collars or seams.

A slight slope or formed profile can help move water toward the edges. The exact configuration depends on the chase dimensions and fabrication approach. Good drainage reduces standing water on the metal and supports long-term performance.

The edges also play an important role. Properly formed sides help cover the top of the chase and direct runoff beyond vulnerable surfaces. Contractors should provide enough information for the fabricator to create a cover that matches the structure and installation method.

Account for Clearances Around Vent Components

Chimney systems require specific clearances, and a custom metal cover should respect those requirements. The chase cover itself does not replace the spacing or fire-safety provisions established for the vent system. Installers should follow the applicable manufacturer instructions and project requirements.

The penetration should also avoid placing unnecessary pressure on the vent. If an opening is too tight or poorly aligned, installation becomes more difficult. Accurate fabrication gives the vent components appropriate space while allowing the cover to remain properly positioned.

This is one reason custom sizing can be valuable for unusual chimney layouts. Instead of adapting a generic cover in the field, contractors can order a configuration based on measured vent locations. That approach supports a cleaner installation and reduces avoidable cutting at the jobsite.

Consider the Number and Placement of Flues

Chase covers can serve simple or complex chimney arrangements. When more than one flue exits the chase, the fabricator needs the center location and dimensions for each penetration. Spacing between those penetrations can influence metal formation.

An off-center flue can also affect the cover design. The fabricator may need to account for limited space near an edge or another penetration. Providing a clear layout helps ensure the finished piece reflects the actual arrangement on the roof.

Contractors should avoid estimating these locations whenever possible. Small measurement errors can become significant once a cover reaches the jobsite. Confirming dimensions before fabrication helps protect the schedule and reduces the chance of a remake.

Choose Custom Fabrication for Better Field Fit

Every chimney chase can present different dimensions and vent locations. Custom fabrication gives roofing contractors a practical way to order sheet metal around those conditions. It also allows the cover to arrive with the primary dimensions and penetrations already incorporated.

That preparation can make installation more efficient. Crews spend less time trying to fit a stock cover to a chase with different dimensions. They can focus instead on installing the cover according to the project requirements and the vent manufacturer's instructions.

For contractors handling repeated chimney work, a reliable fabrication process can also simplify ordering. Clear measurements and consistent communication help translate field conditions into finished metal components. That matters when the project calls for a size or layout that standard products cannot accommodate.

Custom Chimney Chase Covers From Sanders Sheet Metal

A successful custom chimney chase cover ventilation design starts with accurate field information and a fabrication plan that respects the chimney system. The finished cover should fit the chase, manage water, and accommodate the required vent components without creating unnecessary installation complications. Sanders Sheet Metal offers custom chimney sheet metal caps for roofing contractors and customers who need project-specific sizing in Indianapolis and throughout Indiana. Because orders are custom rather than stock, customers can call Sanders Sheet Metal to discuss measurements, vent locations, and the chimney cap configuration needed for the job.
